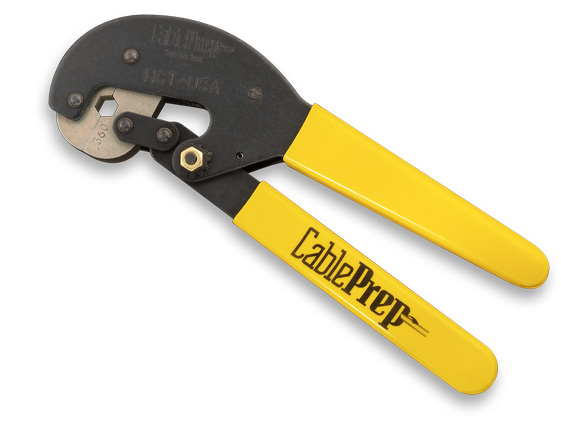

HCT Hex Crimp Tools
HCT steel-frame hex crimping tools crimp connectors and center pins on drop cables. The HCT series of coax crimp tools crimp connectors requiring sizes .042″ through .475″.
HCT tools crimp connectors requiring sizes .042″ through .475″.
Hex Sizes Stamped on Tool Jaw:
Both major and minor hex sizes are clearly stamped on the tool jaw to facilitate picking the right tool for the application.
A Brass Nut for Easy Adjustment:
The nut on the adjustment wheel enables easy calibration in the field and ensures precise and consistent results. Because the nut is a common size, no special tool is required to make the adjustments.
An Innovative “Toggle Action” Design:
Unlike other crimp tools, HCT crimp tools do not use a ratchet closure that crimps even an improperly placed connector, resulting in a poor connection and signal loss. Instead, the innovative “toggle action” design ensures a proper crimp every time.
A Field Maintenance Kit:
Maintenance kits extend the life of HCT and ACT tools by keeping them in top operating condition. Each kit includes new pins, washers, linkage, a brass adjustment nut, and a cogged adjustment wheel.
Item | Order Number | Weight (Ounces) | Weight (Grams) |
---|---|---|---|
Steel-bodied Hex Crimp Tool | All HCT Tools | 24 | 680 |
HCT/ACT Maintenance Kit | MK-1050 | 1.3 | 36 |
Model Number | Hex Size (inches) | ||||
---|---|---|---|---|---|
HCT-41Q | .452 | .320 | |||
HCT-42Q | .320 | .248 | |||
HCT-43Q | .435 | .327 | .295 | ||
HCT-116 | .472 | .324 | |||
HCT-134 | .060 | .076 | |||
HCT-188 | .384 | .324 | .054 | ||
HCT-199 | .475 | .384 | .100 | .054 | |
HCT-202 | .360 | .324 | .068 | ||
HCT-211 | .475 | .096 | |||
HCT-214 | .470 | .162 | |||
HCT-231 | .475 | .262 | .108 | .100 | |
HCT-335 | .475 | .360 | .096 | ||
HCT-350 | .429 | .213 | .110 | .068 | |
HCT-360 | .360 | .068 | |||
HCT-473 | .470 | .360 | |||
HCT-480 | .475 | .108 | |||
HCT-586 | .324 | .212 | |||
HCT-611 | .410 | .324 | |||
HCT-659* | .324 | .262 | |||
HCT-660 | .384 | .324 | |||
HCT-669 | .384 | .324 | .262 | ||
HCT-694 | .275 | .042 | |||
HCT-711 | .410 | .360 | |||
HCT-753 | .429 | .324 | |||
HCT-760 | .255 | .213 | .174 | .068 | .050 |
HCT-770 | .429 | .213 | .100 | .068 | |
HCT-775 | .384 | .324 | .096 | .064 | |
HCT-830 | .167 | .141 | .114 | ||
HCT-888 | .212 | .176 | .151 | .128 | |
HCT-902 | .475 | .324 | .100 | ||
HCT-910 | .360 | .475 | |||
HCT-950 | .213 | .178 | |||
HCT-986* | .360 | .324 | |||
HCT-987 | .255 | .213 | .068 | .052 | |
HCT-BC | .157 | .125 | .085 | .065 | |
HCT-NC | .125 | .157 | .124 | .065 | |
HCT-PC | .125 | .157 | .114 | .066 | |
HCT-USA* | .360 |
*These HCT Hex Crimp Tools have the hex sizes stamped on the jaws of the tool.
Maintenance Kit | Order Number |
---|---|
Kit to maintain all HCT/ACT Tools Set includes four retaining pins and rings, U-shaped spring washers, one set of links, an adjustment wheel, and a brass hex nut. | MK-1050 |
HCT Hex Crimp Tools
HCT steel-frame hex crimping tools crimp connectors and center pins on drop cables. The HCT series of coax crimp tools crimp connectors requiring sizes .042″ through .475″.
HCT tools crimp connectors requiring sizes .042″ through .475″.
Hex Sizes Stamped on Tool Jaw:
Both major and minor hex sizes are clearly stamped on the tool jaw to facilitate picking the right tool for the application.
A Brass Nut for Easy Adjustment:
The nut on the adjustment wheel enables easy calibration in the field and ensures precise and consistent results. Because the nut is a common size, no special tool is required to make the adjustments.
An Innovative “Toggle Action” Design:
Unlike other crimp tools, HCT crimp tools do not use a ratchet closure that crimps even an improperly placed connector, resulting in a poor connection and signal loss. Instead, the innovative “toggle action” design ensures a proper crimp every time.
A Field Maintenance Kit:
Maintenance kits extend the life of HCT and ACT tools by keeping them in top operating condition. Each kit includes new pins, washers, linkage, a brass adjustment nut, and a cogged adjustment wheel.
Mobile users scroll right to view all columns.
Item | Order Number | Weight (Ounces) | Weight (Grams) |
---|---|---|---|
Steel-bodied Hex Crimp Tool | All HCT Tools | 24 | 680 |
HCT/ACT Maintenance Kit | MK-1050 | 1.3 | 36 |
Mobile users scroll right to view all columns.
Model Number | Hex Size (inches) | ||||
---|---|---|---|---|---|
HCT-41Q | .452 | .320 | |||
HCT-42Q | .320 | .248 | |||
HCT-43Q | .435 | .327 | .295 | ||
HCT-116 | .472 | .324 | |||
HCT-134 | .060 | .076 | |||
HCT-188 | .384 | .324 | .054 | ||
HCT-199 | .475 | .384 | .100 | .054 | |
HCT-202 | .360 | .324 | .068 | ||
HCT-211 | .475 | .096 | |||
HCT-214 | .470 | .162 | |||
HCT-231 | .475 | .262 | .108 | .100 | |
HCT-335 | .475 | .360 | .096 | ||
HCT-350 | .429 | .213 | .110 | .068 | |
HCT-360 | .360 | .068 | |||
HCT-473 | .470 | .360 | |||
HCT-480 | .475 | .108 | |||
HCT-586 | .324 | .212 | |||
HCT-611 | .410 | .324 | |||
HCT-659* | .324 | .262 | |||
HCT-660 | .384 | .324 | |||
HCT-669 | .384 | .324 | .262 | ||
HCT-694 | .275 | .042 | |||
HCT-711 | .410 | .360 | |||
HCT-753 | .429 | .324 | |||
HCT-760 | .255 | .213 | .174 | .068 | .050 |
HCT-770 | .429 | .213 | .100 | .068 | |
HCT-775 | .384 | .324 | .096 | .064 | |
HCT-830 | .167 | .141 | .114 | ||
HCT-888 | .212 | .176 | .151 | .128 | |
HCT-902 | .475 | .324 | .100 | ||
HCT-910 | .360 | .475 | |||
HCT-950 | .213 | .178 | |||
HCT-986* | .360 | .324 | |||
HCT-987 | .255 | .213 | .068 | .052 | |
HCT-BC | .157 | .125 | .085 | .065 | |
HCT-NC | .125 | .157 | .124 | .065 | |
HCT-PC | .125 | .157 | .114 | .066 | |
HCT-USA* | .360 |
Maintenance Kit | Order Number |
---|---|
Kit to maintain all HCT/ACT Tools Set includes four retaining pins and rings, U-shaped spring washers, one set of links, an adjustment wheel, and a brass hex nut. | MK-1050 |
