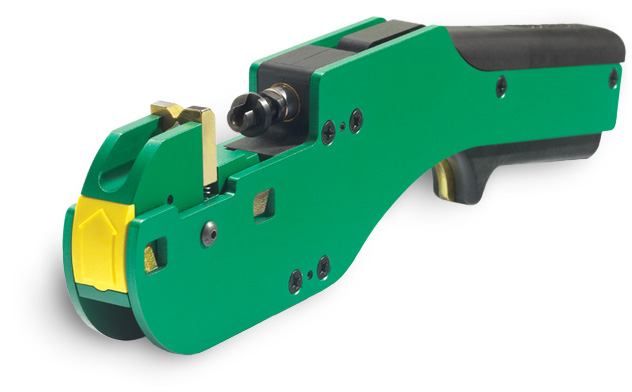

MCT Multi-Compression Tools

Smartly designed with the technician in mind, our MCT Cable Prep dual compression tools feature an innovative wheel that positions one calibrated setting for use, while storing the other connector support dogs neatly away. Convenient, lightweight, rugged, and reliable, these tools attach all connectors commonly used in “RG” drop-cable applications. MCT Cable Prep dual compression tools attach all RCA, BNC, and F-type compression connectors used on RG-6, -59, -11 and mini-coax cables.

MCT multi-compression tools attach all RCA, BNC, and F-type compression connectors used on RG-6, -59, -11 and mini-coax cables.

MCT 852“Spin and Store” Connector Support Wheel for Universal Application:
An innovative spinning wheel allows easy selection of either of two factory-calibrated settings, while storing the alternate connector support dogs neatly out of the way.

MCT 902Universal Tips:
The plunger tips on MCT compression tools are truly universal. The tools support all connector types within a class, with no need to recalibrate the plunger throw or change the tip. The compression throw distance is set at the factory, and a hex lock nut keeps the tool calibrated over long periods of use. Field recalibration, if necessary, is quick and easy.

MCT 013Slotted Plunger Tip for RCA Connectors:
The 6/59 plunger tip is slotted to accommodate RCA-type connectors, facilitating easy connector insertion.

MCT 909360-Degree Connector Support:
Patented dogs provide 360-degree connector support, thereby ensuring uniform compression and preventing connector distortion caused by misalignment.

MCT 868Efficient Self-releasing Dogs:
Cables can be easily inserted and removed from the dogs with one hand, making MCT tools convenient and easy to use. This feature also helps avoid damage to cables.

MCT 845High Mechanical Advantage:
MCT tool handles give all the leverage needed to attach even the most difficult connectors with just one hand.

MCT 832Ergonomic and Balanced Design:
Designed with users in mind, these universal compression tools can be operated easily and comfortably with either hand.

MCT 826Easy-release Handle:
Spring-loaded handle locks for storage and opens with a quick-release trigger.

MCT 942Magnetic Wrench Storage:
A combination calibration wrench and gauge is stored conveniently inside the handle. A magnetic slot keeps the wrench secure between infrequent tool adjustments.

MCT 863Smart, Lightweight Design:
Constructed of high-strength materials for durability, MCT universal compression tools are surprisingly lightweight.

MCT 979-982Tool Pouch:
A tool pouch designed specifically for the MCT tool is separately available from Cable Prep.

The “Dimension” column indicates the “closed” dimension.

Part NumberDimension
(Inches)
Weight
(Pounds)
Weight
(Kilograms)
MCT-10110.251.5.68
MCT-10210.251.5.68
MCT tools come in two configurations. Each configuration has a connector support wheel with two sets of dogs. Each set of dogs is identified by a color-coded indicator on the front of the wheel, and supports all connectors in a given class. To determine which tool is right for your application, determine the classes of connectors that you most often use and select the tool that supports those classes. Common connectors are listed below. Abbreviations used for MCT ordering information: ICC – International Connectors and Cable PPC – Production Products Company PCT – Phoenix Communications Technology SNS – Thomas & Betts Snap-N-Seal.



Connector Support Wheel Color Key:

RG-6, RG-59, and mini

F and RCA RG-11 F

RG-6, -59, and mini BNC
MCT-101

MCT-102

Cablecon
CX3 6 and 59
Cablecon
(BNC)
Channel Vision
Push & Seal® 6, 59 and mini (F and RCA)
Channel Vision
Push & Seal® 6, 59 and mini (BNC)
Channel Vision
Push & Seal® 7 & 11 (F)
Corning Cablecon
CX3 6 & 59 (F)
Corning Cablecon
CX3 7 & 11 (F)
Corning Gilbert
GAS320QRP
Corning Gilbert
Ultra Ease® 6, 59 & mini (F and RCA)
Corning Gilbert
Ultra Ease® 6, 59 & mini (BNC)
Corning Gilbert
Ultra Ease® 7 & 11 (F)
Corning Gilbert
Ultra Range® 6 & 59 (F)
Digicon®
DS 6, 59 & mini (F and RCA)
Digicon®
DS 6, 59 & mini (BNC)
Digicon®
DS 7 & 11 (F)
F-conn
FS 6, 59 & mini (F and RCA)
F-conn
FS 6, 59 & mini (BNC)
F-conn
FS 7 & 11 (F)
Holland Electronics
Superlok SLC® 6, 59 and mini (F and RCA)
Holland Electronics
Superlok SLC® 6, 59 and mini (BNC)
Holland Electronics
Superlok SLC® 11 (F)
ICC
Push & Seal® 6 & 59 (F)
ICC
Push & Seal® 7 & 11 (F)
Ideal
OmniCONN™ 6 & 59 (F and RCA)
Ideal
Uniseal® 6 & 59 (F)
Liberty
ConnecTec 6 & 59 (F and RCA)
Liberty
ConnecTec 6 & 59 (BNC)
Paladin
Seal Tight® 6 & 59 (F and RCA)
Paladin
Seal Tight® 6 & 59 (BNC)
Phoenix (PCT)
DRS 6 & 59 (F and RCA)
Phoenix (PCT)
Mini 59 (F)
Phoenix (PCT)
DRS 6 & 59 (BNC)
Phoenix (PCT)
DRS 7 & 11 (F)
Phoenix (PCT)
TRS 6 & 59 (F)
Phoenix (PCT)
TRS 7 & 11 (F)
Pico Macom
Perma Seal II® 6 & 59 (F)
Pico Macom
Perma Seal II® 7 & 11 (F)
Pico Macom
Push and Seal 6, 59 and mini (F and RCA)
Pico Macom
Push and Seal 6, 59 and mini (BNC)
PPC
CMP Mini 59 (F)
PPC
CMP 6 & 59 (RCA)
PPC
CMP 6 & 59 (BNC)
PPC CMP
EXXL and EXXLWS 6 & 59 (F)
PPC
EX 6 & 59 (F)
PPC
EX 6 & 59 (BNC)
PPC
EX 7 & 11 (F)
PPC
EX 320QR
Steren
Perma Seal II® 6, 59 and mini (F and RCA)
Steren
Perma Seal II® 6, 59 and mini (BNC)
Steren
Perma Seal II® 7 & 11 (F)
Stirling
6 & 59 (F)
Stirling
7 & 11 (F)
Stirling
SPL 6 (RCA)
Stirling
SPL 6 (BNC)
Stirling
SPL 11 (F)
Belden/PPC
Snap-N-Seal® (SNS) 6, 59 and mini (F and RCA)
Belden/PPC
Snap-N-Seal® (SNS) 6, 59 and mini (BNC)

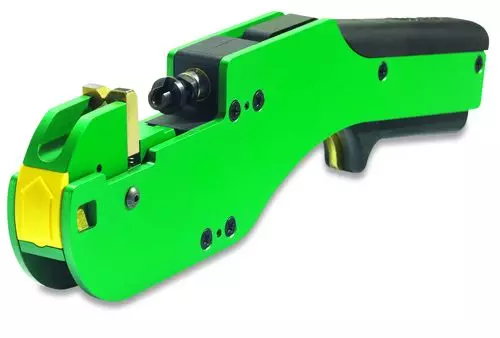

MCT Multi-Compression Tools
