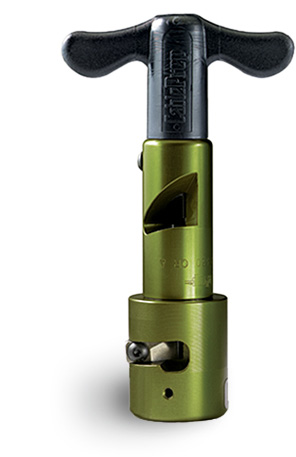

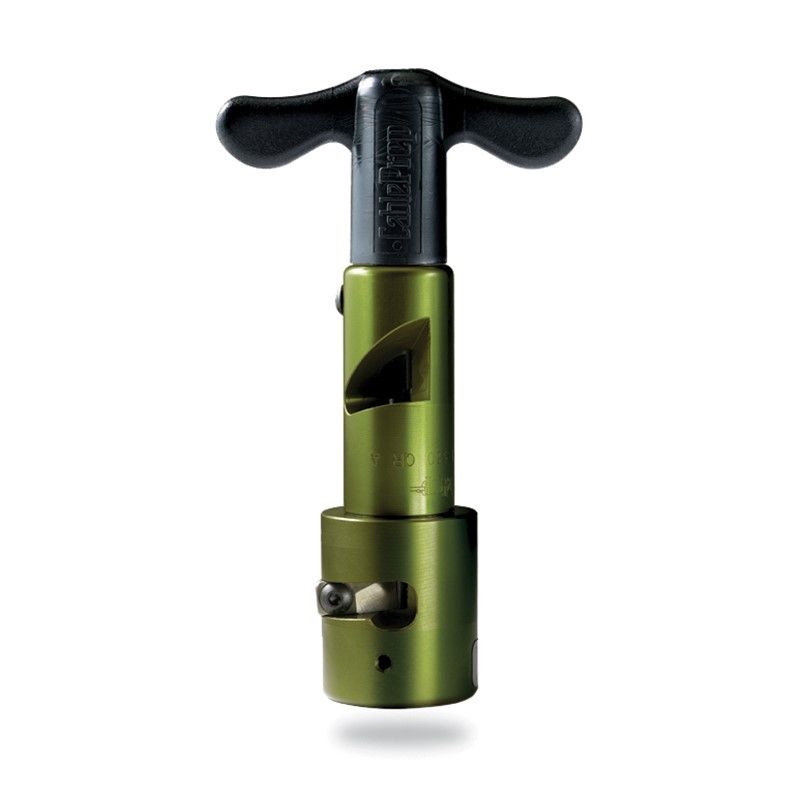

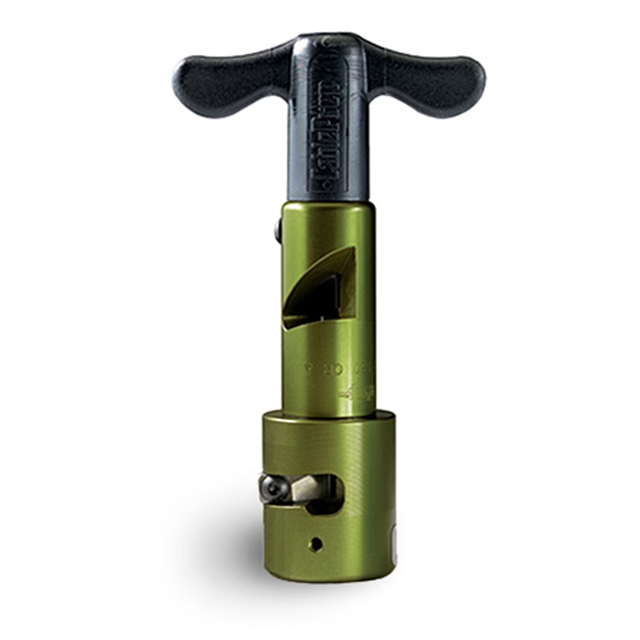

SCT-QR Coring & Stripping Tools

Nov 30, 2017

SCT-QR stripping/coring tools strip back and bevel the outer conductor, core the dielectric, and strip back the outer jacket on CommScope® Quantum Reach® (QR) cables.

SCT-QR Hardline stripping & coring tools strip back and bevel the outer conductor, core the dielectric, and strip back the outer jacket on CommScope® Quantum Reach® (QR) cables. SCT-QR Hardline stripping & coring tools work on 0.320″ through 1.125″ CommScope® Quantum Reach® (QR) cables.

Note that, because the jacket must be stripped after coring, SCT tools for QR applications include a special, integrated jacket stripper made especially for this purpose.

Stripped QR cableThree Functions in One Operation:
SCT-QR tools speed connectorization because they strip back and bevel the outer conductor and core the dielectric in one smooth operation.





Non-clogging Stops:
There is a non-clogging internal stop on every SCT-QR tool that is factory-set to the required dimension for the cable.





SC 540QRPatented Stripping/Coring Blades:
The bevel on the coring edge of the blade self-aligns on the center conductor, which enables an SCT-QR tool to core cable even when it is out-of-round. Made of tool steel that is heat treated to full hardness, the blade bevels the outer conductor, thereby eliminating O-ring damage and minimizing water migration.





SCT 540QR handle optionsManual or Drill Operation:
SCT tools can be ordered with a standard ergonomic handle or a Cable Prep brand RTH ratchet T-handle. Either handle can be removed for operation with a 3/8- inch variable speed drill.





SCT QR separated JCSAttached Jacket Stripping Tool:
Because the jacket on QR cable must be stripped after the coring operation, each SCT-QR stripping/coring tool (labeled SCT-QR-A) comes with a special jacket stripping tool (labeled SCT-QR-B). The two pieces are threaded, so they can be assembled and stored as one unit, which protects the insides of the parts from damage. The jacket stripper is designed with a patented mandrel pin that supports the soft aluminum outer conductor and keeps it from being damaged during the jacket stripping operation.

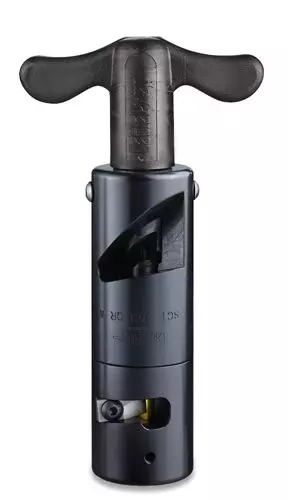

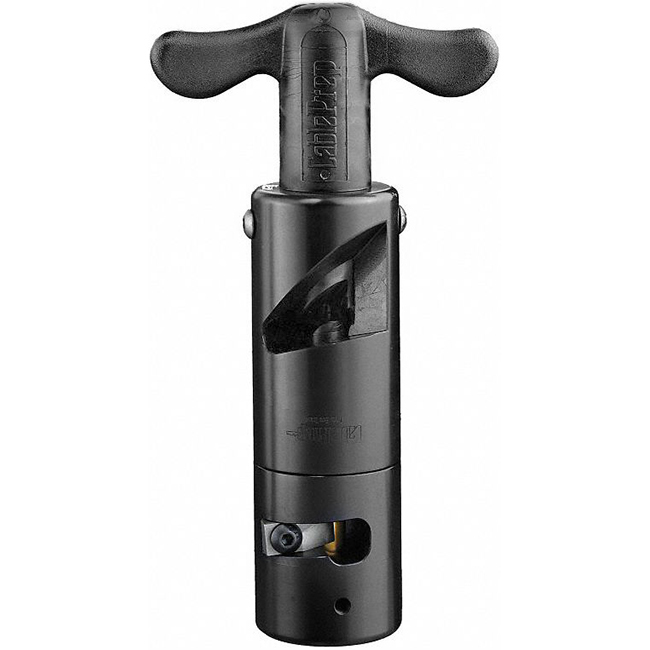

SCT-QR tools are black anodized aluminum.

Order NumberWeight
(Ounces)
Weight
(Grams)
SCT-7MMQR15.4435.4
SCT-F320QR15.4435.4
SCT-500QR22.1626
SCT-540QR22.1626
SCT-715QR23653.2
SCT-860QR23653.2
SCT-1125QR31.4889
RSCT-7MMQR23.7671.3
RSCT-F320QR9.6272.2
RSCT-500QR30.4861.8
RSCT-540QR30.4861.8
RSCT-715QR31.4889
RSCT-860QR31.4889
RSCT-1125QR39.71124.9
SC-7MMQR15.4435.4
SC-F320QR15.4435.4
SC-500QR22.1626
SC-540QR22.1626
SC-715QR23653.2
SC-860QR23653.2
SC-1125QR31.4889
FINAL TRIM DIMENSION CROSS-REFERENCE TABLE
SCT/RSCT ToolCore
Depth
(Inches)
Center Conductor
Stop Length
(Inches)
Jacket
Strip Back
(Inches)
(R)SCT-7MMQR1 1/4
1.250
1
1.000
1/2
0.500
(R)SCT-F320QR9/16
0.5625
7/16
0.4375
3/8
0.375
(R)SCT-500QR1 1/4
1.250
1
1.000
1/2
0.500
(R)SCT-540QR1 1/4
1.250
1
1.000
1/2
0.500
(R)SCT-715QR1 1/4
1.250
1
1.000
1/2
0.500
(R)SCT-860QR1 1/4
1.250
1 1/16
1.0625
5/8
0.625
(R)SCT-1125QR1 1/4
1.250
1 1/4
1.250
5/8
0.625

SCT-QR tools can be ordered with either a standard handle or a ratchet T-handle. The ratchet T-handle can be removed for use on any Cable Prep brand SCT- and AIO-series tool.

Replacement blade kits include a coring-tool blade, a jacket-stripping blade, screws, a spring washer, and a hex key.

SCT-QR tools include the appropriate jacket stripper. No separate jacket stripper need be ordered.

 Tool with Standard HandleTool with Ratchet T-handleBlade Kit
CommScope® Quantum Reach® Cable Size
.320 (7 mm) QRSCT-7MMQRRSCT-7MMQRSC-7MMQR
320 (7 mm) QR with Corning Gilbert GAF-360-320-QR Crimp Style, Thomas & Betts SNS320QR, or PPC EX320QR connectorsSCT-F320QR*RSCT-F320QR*SC-F320QR
500 QRSCT-500QRRSCT-500QRSC-500QR
540 QRSCT-540QRRSCT-540QRSC-540QR
715 QRSCT-715QRRSCT-715QRSC-715QR
860 QRSCT-860QRRSCT-860QRSC-860QR
1125 QRSCT-1125QRRSCT-1125QRSC-1125QR
*The HCT/ACT-41Q crimp tool is used for the Corning Gilbert GAF-360-320-QR connector. The PT- or AT-5000UNV-711 TerminX® compression tool is used for the Corning Gilbert GAS320QRP connector, the Thomas & Betts SNS320QR connector, and the PPC320QR connector.





Note that SCT-QR tools include the appropriate jacket stripper. Please see JCS Jacket Strippers for a list of replacement jacket strippers for QR cable.
